Salt River Pumped Storage Project

About the project

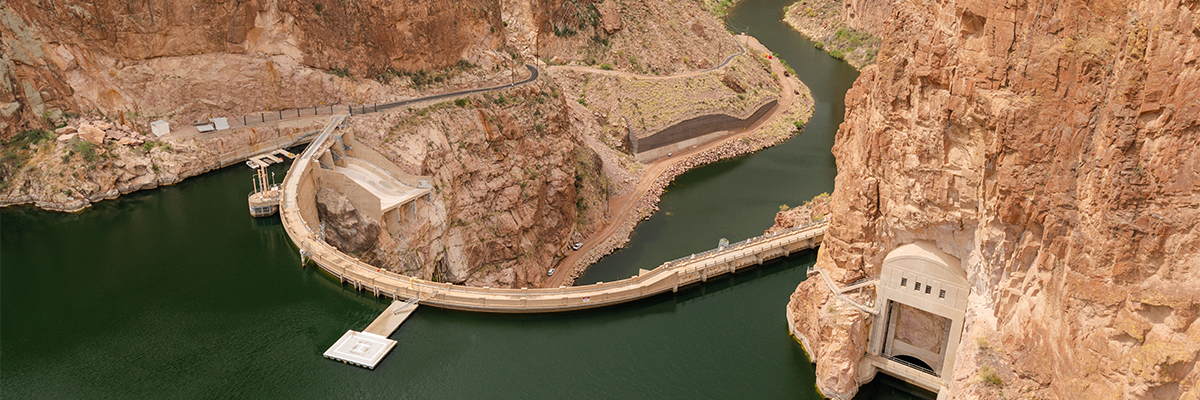

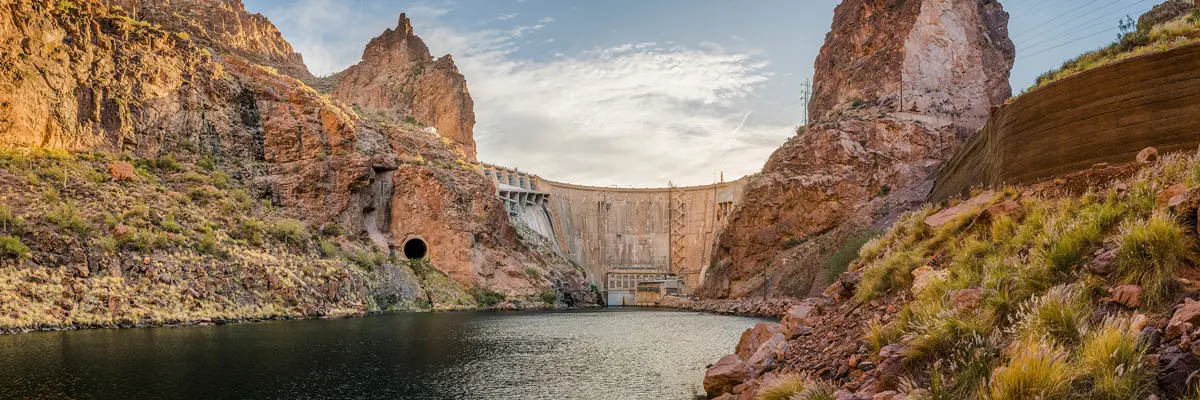

SRP has been operating pumped storage units on the Horse Mesa and Mormon Flat dams for over 40 years.

As part of the Salt River Pumped Storage Project, SRP is exploring opportunities to expand pumped storage hydropower on the Salt River reservoir system.

SRP is evaluating two potential sites for a new pumped storage hydropower facility to pair with Apache Lake on the Salt River. The pumped storage hydropower facility would require construction of a new reservoir to act as the upper reservoir and additional transmission infrastructure to connect to SRP’s existing 500-kilovolt (kV) Coronado-Silver King transmission line near the intersection of SR188 and SR288. The proposed pumped storage sites and transmission infrastructure routing options are depicted in the study area map.

The results from the engineering design efforts, environmental surveying and public input are assisting SRP in selecting a preferred pumped storage site and transmission routes for permitting efforts.

Salt River Pumped Storage Project Public Open House

SRP is making transformative changes to its power generation resource portfolio. Battery storage and other energy storage technologies will be important to meet the growth in energy demand in SRP’s service territory and to integrate more renewable energy into the grid. SRP is exploring a pumped storage hydropower option that would add up to 2,000 megawatts of energy storage capacity near Apache Lake on the Salt River. 

We regret to inform you that the Pumped Storage Project open house meetings are being postponed until further notice. Please continue to check this webpage for more updates.

Updated Proposed Project Features

• Original Proposed Project Features
• Proposed Transmission Routes

How pumped storage hydropower works

Pumped storage hydropower facilities store and generate electricity by moving water between two reservoirs at different elevations.

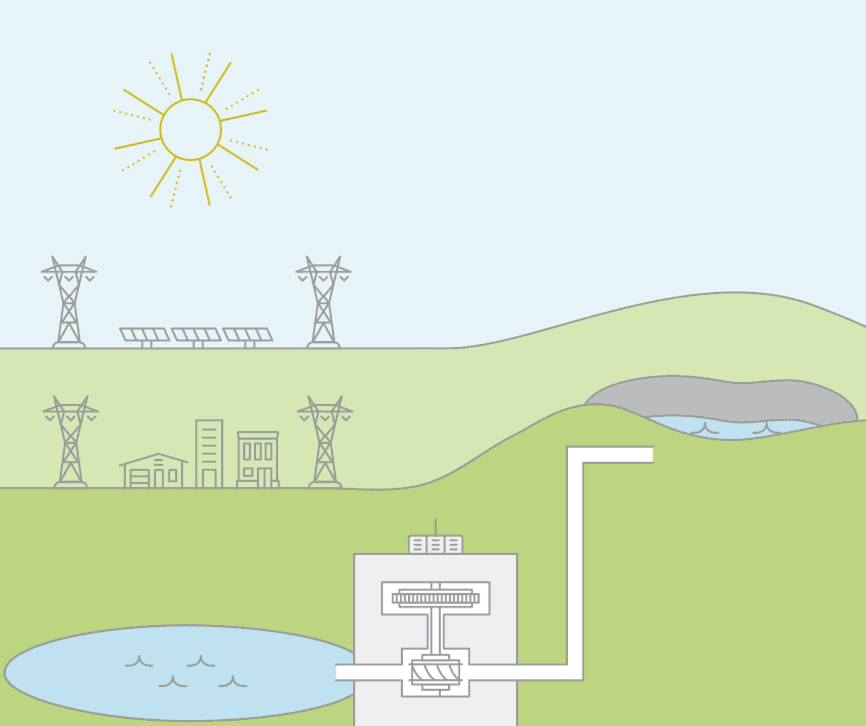

Morning and midday

When electricity demand is lower and SRP has excess supply available, the turbines spin backward to pump the water back into the upper reservoir so it can be used again to generate power. As SRP adds more solar to the grid in the coming years, we expect that the amount of solar available will exceed demand during the morning and midday periods.

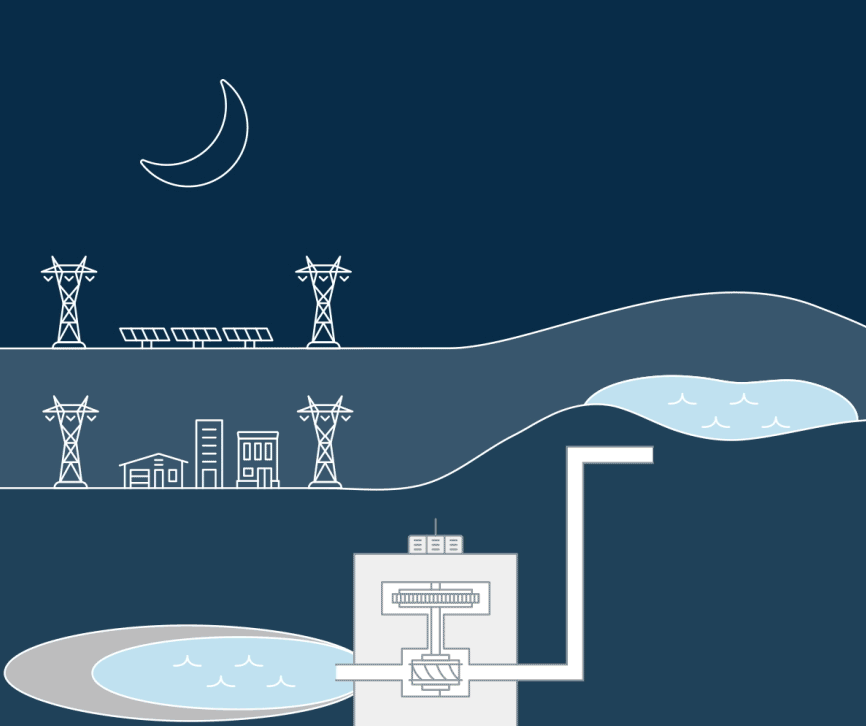

Late afternoon and overnight

To generate electricity when power from the plant is needed, water is released from the upper reservoir through hydropower turbines that rotate generators to produce electricity. The water flows into the lower reservoir where it stays until electricity demand lowers.

Pumped storage project video

Benefits of pumped storage hydropower

Pumped storage hydropower provides a large-scale way to store and deliver electricity to customers. Below are some of the reasons we’re planning to add it to our power generation sources.

Supports grid reliability

Generating pumped storage hydropower helps SRP diversify our resource portfolio. That means the energy we produce is more reliable, more diverse, and less sensitive to supply chain or market shocks that could negatively impact prices.

Boosts renewable energy supply

Pumped storage hydropower can also play a key role in helping us store renewable energy that’s generated during the day so it can be used at night. One facility can provide 10 to 12 hours of energy storage.

Reduces carbon intensity

Another benefit of pumped storage hydropower is that it supports the growth of SRP’s renewable energy resource mix. This helps SRP on its path to meet its 2035 Sustainability Goals in the coming years and, ultimately, serve our customers and communities by providing reliable, affordable and sustainable power.

Project timeline: Target in service by 2033

Following engineering feasibility assessments and environmental permitting, SRP could decide to begin construction in 2027.

This timeline would allow SRP to construct the facility for an online date of 2033 to help meet SRP's significant resource need in early 2030.

Past events

Events in 2024

SRP hosted the following public meetings in April 2024. See the public meeting presentation.

Events in 2023

SRP hosted the following public meetings in November 2023. See the public meeting presentation.

Public input process

As this project moves forward, there will be a variety of opportunities for public input. SRP will provide more information here as opportunities for public input become available.
